AFE-R761 GMSL & AHD

GMSL

GMSL Support List
Camera	Chip/Vendor	MPN	Factor
GMSL Camera	Sensor：ISX031(2.5M) Serializer：MAX96717F	KCC.A002.20	Fakra CONN
	Sensor：ISX031(2M) Serializer：MAX9295A	KCC.A002.13	Fakra CONN

GMSL	Camera model	Output Voltage	Power	Rate	Reslution Ratio
	MAX96712/MAX96716	12V	200mA	6G	1920*1080 30HZ

AFE-R761-UxC1 can support 4 ~ 6 GMSL Cameras via AFE-RM02-xPA1 expansion board. The default supported resolution is 1920 x 1080 @ 30fps.
Please note that the supported voltage is 12V.

Hardware pin definition：

GMSL：GMSL Camera Connector
Pin	Pin Name
1	GMSL_IN_P (12V)
2	GND
3	GND
4	GND
5	GND

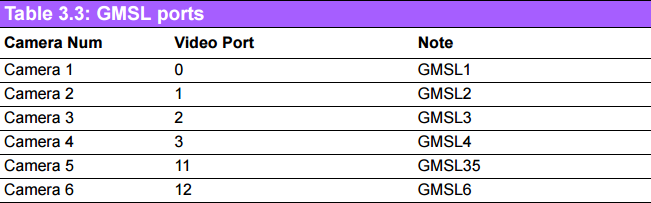

SW Number

AHD

AHD	Camera model	Output Voltage	Power	Rate	Resolution Ratio
	MAX96717	12V（5V Bom）	200mA	1.2G	1920*1080 30Hz

AFE-R761-UxB1 can support 4 ~ 6 AHD Cameras via AFE-RM01 expansion board. The default supported resolution is 1920 x 1080 @ 30fps.

Please note that the supported voltage/current is 12V/200mA.

Hardware pin definition：

AHD：AHD Camera Connector
Pin	Pin Name
1	AHD_GND
2	AHD_VIN
3	12V
4	GND

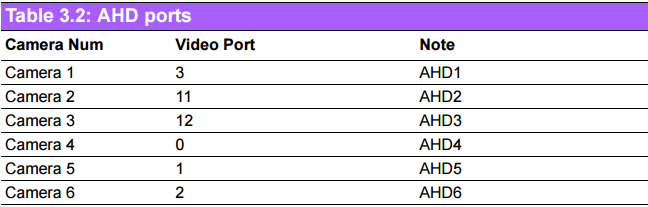

SW Number：

SW Function

View Resolution

Taking port 0 as an example, you can enter the following instructions to view information such as the resolution, pixel format, Field, Number of planes, Flags, Colorspace,
Transfer Function, YCbCr/HSV Encoding, Quantization, Bytes per Line and Size Image.

# v4l2-ctl -d /dev/video0 --get-fmt-video
Format Video Capture Multiplanar:
 Width/Height : 1920/1080
 Pixel Format : 'NV12' (Y/UV 4:2:0)
 Field : None
 Number of planes : 1
 Flags :
 Colorspace : Rec. 709
 Transfer Function : Rec. 709
 YCbCr/HSV Encoding: Rec. 709
 Quantization : Default
 Plane 0 :
 Bytes per Line : 1920
 Size Image : 31104000

Set Resolution

Taking port 0 as an example, you can enter the following commands to set the resolution to 1920*1080.

# v4l2-ctl -d /dev/video0 --set-fmt-video=width=1920,height=1080,pixelformat='NV12'

Preview camera

Taking port 0 as an example, you can set the preview of the camera video by using the following command.

# export DISPLAY=:0.0
# export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/lib/aarch64-linux-gnu/
gstreamer-1.0
#gst-launch-1.0 v4l2src device=/dev/video0 \
! video/x-raw,format=NV12,width=1920,height=1080,framerate=30/1 ! xvimagesink

Camera photography

Taking port 0 as an example, the following command can be used to take a camera photo, and the save address is picture.jpg in the current directory.

# gst-launch-1.0 v4l2src device=/dev/video0 num-buffers=10 \
! video/x-raw,format=NV12,width=1920,height=1080 ! jpegenc \
! multifilesink location=picture_%02d.jpg && \
rm picture_0{0..8}.jpg && mv picture_09.jpg picture.jpg

Camera screen recording

Taking port 0 as an example, the following command can be used to record videos with the camera, and the save address is video.mp4 in the current directory.

# gst-launch-1.0 -e \
v4l2src device=/dev/video0 \
! video/x-raw,format=NV12,width=1920,height=1080,framerate=25/1 \
! videoconvert \
! x264enc bitrate=5000 speed-preset=ultrafast tune=zerolatency \
! h264parse \
! mp4mux \
! filesink location= video.mp4

Note：

If the camera used by the customer is not on the supported list, close cooperation with the original manufacturer of the camera is required. Please ask the original manufacturer to provide the following materials:
1. The specification sheet of the camera
2. The specification sheet of the serial converter
3. The specification of the camera sensor
4. And reference code.
