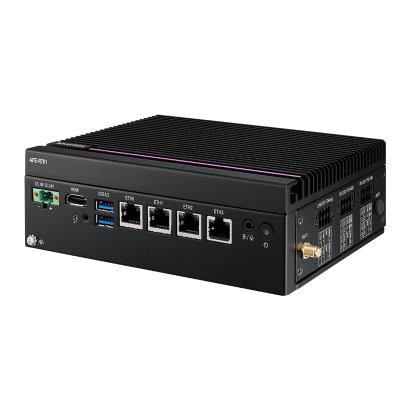

AFE-R761 is powered by a Rockchip RK3588 SoC, which features a Quad Arm Cortex-A76 and Quad Cortex-A55 processors, a 6Tops NPU, and a high-performance Arm Mali-G610 3D graphics engine. The AFE-R761 provides a variety of interfaces, including 2 x USB3.0, 4 x USB2.0, 4 x Gigabit Ethernet, 2 x CAN FD, 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key, 4 x COM, 1 x HDMI and multi cameras input(GMSL or AHD).
The AFE-R761 supports multiple operation systems, including Debian12 with RT patch and Android14. It also integrates the Advantech power suite, ROS and EtherCAT to accelerate customer design processes.
- Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
- Built-in NPU with processing performance of up to 6 TOPS
- Onboard 8/16GB LPDDR4 memory and 64/128GB eMMC
- Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
- Dedicate I/Os for AMR : 1 x 2.5GbE, 3 x GbE, 2x USB3.2, 4 x USB2.0, 2 x CAN FD, 4 x RS-485, 8bit isolated DIO
- 12-24V DC In, contact: 8KV, air: 15KV, ESD protection
- Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal
- Supports Linux Debian12, Android14
