ASR-A501

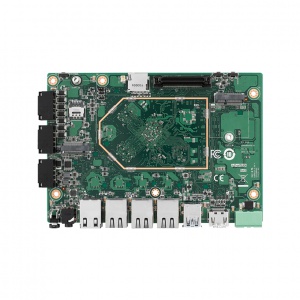

The Advantech ASR-A501 is a 4-inch single board computer powered by a Rockchip RK3588 SoC, which features a Quad Arm Cortex-A76 and Quad Cortex-A55 processors, a 6Tops NPU, and a high-performance Arm Mali-G610 3D graphics engine. The ASR-A501 provides a variety of interfaces, including 2 x USB3.0, 4 x Gigabit Ethernet, 2 x CAN FD, 1 x M.2 B-Key (PCIex1/SATA/USB2.0), 1 x M.2 E-Key (PCIe x1 / USB 2.0), 4 x COM, 1 x HDMI. Additionally, it supports multiple cameras (GMSL or AHD) through extension boards such as AFE-RM01 or AFE-RM02. The ASR-A501 supports multiple operation systems, including Debian12 with RT patch and Android14. It also integrates the Advantech power suite, ROS, and EtherCAT to accelerate customer design processes. Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz Built-in NPU with processing performance of up to 6 TOPS Onboard 8/16GB LPDDR4 memory and 64/128GB eMMC Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding Supports 2 x PCIE 3.0 x1, 2 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, and 1 x USB by 120-pin B2B connector Provides 1 x 2.5GbE, 3 x GbE, 2 x USB3.0, 2 x CAN FD, 2 x RS-232/485, 2 x RS-485, 1 x HDMI2.0, 1 x Line out/Mic in 12-24V DC In, contact: 8KV, air: 15KV, ESD protection Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal Supports Linux Debian12, Android14 Find Other Products

Debian Debian 12 （Kernel 6.1.75-rt16） User Guide   Release Note Android Android 14 （Kernel 6.1.75) User Guide   Release Note   App Add on EdgeAI SDK RKNN AI Demo lgh EtherCAT ROS2 主流模型性能评估（TBD） 安全相关 Documentation Datasheet Manual 3D Model FCC
