Introduction

This document describes how to work with the RISC and Qualcomm LE GA1.3 Board Support Package (BSP) release.

Yocto Version

Yocto 4.0.22

Kernel Version

Kernel 6.6.52

Meta Build ID

QCM6490.LE.1.0-00321-STD.PROD-1

Host machine requirements

OS

Ubuntu 20.04 or Ubuntu 22.04

CPU

Intel Core-i7 Processor (>= 8 cores)

RAM

16+ GB RAM

Disk

350 GB free disk space (more is recommended and SSD is suggested for better performance)

Docker Install and BSP Download

Install Docker Engine on your platform

Please refer to Docker Installation Guide for details

Pull docker images

$ sudo docker pull advrisc/u20.04-qcslbv2:latest

Run docker example

$ mkdir -p /home/bsp/myLinux
$ sudo docker run --privileged -it --name qclinux -v /home/bsp/myLinux:/home/adv/BSP:rw advrisc/u20.04-qcslbv2 /bin/bash
adv@7cc0fa834366:~$ sudo chown adv:adv -R BSP

Download BSP

You need to get the ADV_GIT_TOKEN by contacting the PM or AE of AOM-2721.

$ cd /home/adv/BSP
$ git config --global credential.helper 'store --file ~/.my-credentials'
$ echo "https://AIM-Linux:${ADV_GIT_TOKEN}@dev.azure.com" > ~/.my-credentials

Refer to Release image URL: OS Support List(LE1.3 based on Yocto4.0.22) , Official version "aom2721a1_yl01301_k0606052_q6490_08g.xml" is taken as an example :

$ repo init -u https://dev.azure.com/AIM-Linux/risc_qcs_linux_le_1.3/_git/manifest -b main -m aom2721a1_yl01301_k0606052_q6490_08g.xml
$ repo sync -c -j${YOUR_CPU_CORE_NUM}

If you want to get latest bsp

$ repo init -u https://dev.azure.com/AIM-Linux/risc_qcs_linux_le_1.3/_git/manifest -b main -m adv-6.6.52-QLI.1.3-Ver.1.1_robotics-product-sdk-1.1.xml
$ repo sync -c -j${YOUR_CPU_CORE_NUM}

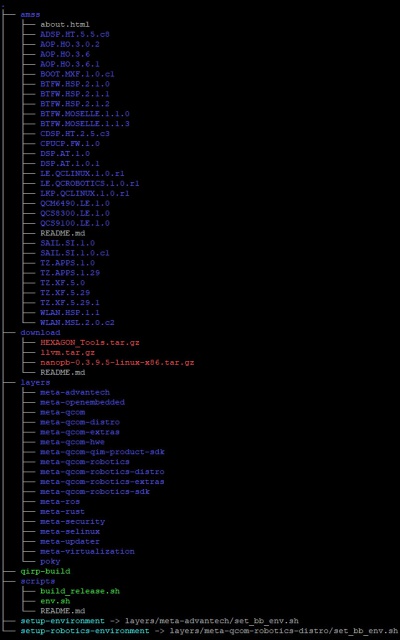

You can check the download BSP as the following.

Get and Unzip the Downloads Files (Must to do)

Yocto downloads file:[ downloads.qcs6490.le.1.3.tar.gz ]

The size of downloads.qcs6490.le.1.3.tar.gz is 42184177080 byte (41,195,486 KB)

The md5sum of downloads.qcs6490.le.1.3.tar.gz is a1d84a26bfd04eb06349994a0c3f66db

You need to get the PASSWORD by contacting the PM or AE of AOM-2721.

$ cd /home/adv/BSP
$ openssl des3 -d -k ${PASSWORD} -salt -pbkdf2 -in downloads.qcs6490.le.1.3.tar.gz -out downloads.qcs6490.le.1.3.decrypt.tar.gz
$ tar -zxvf downloads.qcs6490.le.1.3.decrypt.tar.gz

Build Instructions

Source env

For the "Build All images", "Build All Images individually" and "Build yocto images", you need to do the "Source env".

$ source scripts/env.sh

Build All Images

$ scripts/build_release.sh -all -qcs6490aom2721a1 -user

Output ufs images: build-qcom-robotics-ros2-humble/tmp-glibc/deploy/images/qcm6490/qcom-robotics-full-image
Output emmc images: build-qcom-robotics-ros2-humble/tmp-glibc/deploy/images/qcm6490/qcom-robotics-full-image-emmc

Build All Images individually

1. Build ADSP Image

After building the ADSP, you need to build the "6. Generate Firmware Prebuilds" to package new firmware prebuild files.

$ scripts/build_release.sh -adsp

2. Build AOP Image

After building the AOP, you need to build the "6. Generate Firmware Prebuilds" to package new firmware prebuild files.

$ scripts/build_release.sh -aop

3. Build CDSP Image

After building the CDSP, you need to build the "6. Generate Firmware Prebuilds" to package new firmware prebuild files.

$ scripts/build_release.sh -cdsp

4. Build BOOT(XBL) Image

After building the BOOT(XBL), you need to build the "6. Generate Firmware Prebuilds" to package new firmware prebuild files.

$ scripts/build_release.sh -boot

5. Build TZ Image

After building the TZ, you need to build the "6. Generate Firmware Prebuilds" to package new firmware prebuild files.

$ scripts/build_release.sh -tz

6. Generate Firmware Prebuilds

$ scripts/build_release.sh -common

Output firmware prebuild files:

amss/QCM6490.LE.1.0/common/build/ufs/bin/QCM6490_bootbinaries.zip

amss/QCM6490.LE.1.0/common/build/ufs/bin/QCM6490_dspso.zip

amss/QCM6490.LE.1.0/common/build/ufs/bin/QCM6490_fw.zip

7. Build YOCTO Image by build script

$ scripts/build_release.sh -yocto -qcs6490aom2721a1 -user

Build yocto images

$ cd /home/adv/BSP
$ source scripts/env.sh
$ unset DEBUG_BUILD
$ MACHINE=qcs6490aom2721a1 DISTRO=qcom-robotics-ros2-humble QCOM_SELECTED_BSP=custom source setup-robotics-environment
$ ../qirp-build qcom-robotics-full-image

Recovery & Rescue

Using windows PCAT or Qualcomm Download (QDL) tool to flash software images to the device.

Get the official images and unzip

Release image URL: OS Support List(LE1.3 based on Yocto4.0.22)

Unzip command example:

$ sudo tar -zxvf aom2721a1_yl01301_k0606052_q6490_08g_ufs4_2025-04-06.tgz

Enter EDL download mode

Connect the Micro USB (EDL) to your host computer.
Forced Recovery: The SW2 switch to 1-on.
Flash EMMC: the SW1 switch to 1-off, 2-on
Flash UFS: the SW1 switch to 1-on, 2-on
Connect the adapter and power on the device

Use the windows PCAT to flash images

1. Download the Qualcomm Software Center

Qualcomm® Software Center

2. Open the Qualcomm Software Center

3. Search "PCAT" in the search bar

4. Click Qualcomm® Product Configuration Assistant Tool

5. Select Qualcomm® Product Configuration Assistant Tool version

Version: 2.33.2.119

6. Install Qualcomm® Product Configuration Assistant Tool 2.33.2.119

7. Search "QUTS" in the search bar

8. Click the Qualcomm® Unified Tools Services

9. Select Qualcomm® Unified Tools Services version

Version : 1.75.2.9

10. Install Qualcomm® Unified Tools Services 1.75.2.9

11. You will find the new application after installing the PCAT and QUTS in your Windows system .

12. Unzip the UFS File and eMMC File

For example :

aom2721a1_yl01301_k0606052_q6490_08g_ufs4_2025-04-06.tgz

aom2721a1_yl01301_k0606052_q6490_08g_emmc_2025-04-06.tgz

13. Connect your device via Micro USB.

USF Provision

1. Select provision button

2. Add the prog_firehose_ddr.elf and provision_ufs31.xml in UFS folder.

3. Then press "OK" , it will start to do USF Provision.

4. When the Provision finished , you can see the result in message window.

Flash UFS

1. Change the SW1 and SW2

Flash UFS: the SW1 switch to 1-on, 2-on

Forced Recovery : The SW2 switch to 1-on ,2 - on .

2. Turn on the power

3. Open " PCATApp" Tool

4. Click " Connect A Device"

5. Select "Qualcomm HS-USB QDLoader 9008 (COM6)

6. Click " Connect " device

7. When you connected successfully , it will show "green word" - Qualcomm HS-USB QDLoader 9008 (COM 6)

8. Select UFS Folder in PCAT Tool , the Tool will help load Files automatically and Select "MEMORY_TYPE_UFS"

9. Click " Download"

10. UFS Download Status

11. UFS Donwload compeleted

12. When the UFS installation finished . Close the PCAT tool ,

13. pleaes remove the mirco usb cable, turn off the power

14. UFS boot up :

The SW1 switch to 1-on, 2-on

The SW2 switch to 1-off, 2-on

15. Connect debug cable and open the terminal , turn on the power .

16. When the systme boot up , you need to type " qcs6490aom2721a1 login: root " , " Password: oelinux123"

17. After type the long in and password , and you also can chek the image information about date , kernel version etc..

Flash eMMC

1. Turn off the Power

2. Change the SW1 and SW2

Flash eMMC: The SW1 switch to 1-off, 2-on

Forced Recovery : The SW2 switch to 1-on, 2-on

3. Turn on the power

4. Make sure the device connection status.

5. If the device disconnect with PCAT Tool , please connect it again.

6. Select eMMC Folder.

7. Make sure the setting ,then press " Download " button.

8. eMMC downlaoad status

9. eMMC Donwload compeleted

10. When the eMMC installation finished . Close the PCAT tool ,

11. pleaes remove the mirco usb cable, turn off the power

12. eMMC boot up :

The SW1 switch to 1-off, 2-on

The SW2 switch to 1-off, 2-on

13. Connect debug cable and open the terminal , turn on the power .

14. When the systme boot up , you need to type " qcs6490aom2721a1 login: root " , " Password: oelinux123"

15. After type the long in and password , and you also can chek the image information about date , kernel version etc..

Customization

Setting up SDK

You can download the sdk from [ sdk.qcs6490.le.1.3.tar.gz ]

The size of sdk.qcs6490.le.1.1.r00041.0.tar.gz is 5303727696 byte (5,179,422 KB)

The md5sum of sdk.qcs6490.le.1.1.r00041.0.tar.gz is f200fabd69c4751c61c280b6583449e7

Or perform the following command in terminal console

$ cd build-qcom-robotics-ros2-humble/tmp-glibc/deploy/sdk
$ sudo ./qcom-robotics-ros2-humble-x86_64-qcom-robotics-full-image-armv8-2a-qcs6490aom2721a1-toolchain-2.1.2.sh

Enter new installed directory or just press Enter to use default directory. While Proceed[Y/n]? shows up, please enter the correct one.

Waiting for the SDK installed (while the following messages show up completely)

Setting up cross compiling environment

SDK has been set up (ref.Setting up SDK) Perform the following command in terminal console

$ source ${TOOLCHAIN}/environment-setup-armv8-2a-qcom-linux

AIM-Linux/BSP/Qualcomm/RISC QCS Yocto LE1.3 AOM2721
