ASR A702 Development

Attention

Account & Password

Account number

ubuntu

In device used "sudo" or "sudo su" to root. Password required.

ubuntu

Flash Mac Address

Download I226 tool to Device

I226 Flash Tool

Extract file

$ sudo tar zxvf LAN_I226_ASR-A702.tar.gz

Flash

Attention : The MAC address can only be burned in once

Please make sure mac address and set in : -mac=<XXXXXXXXXXXX>

$ cd LAN_I226_ASR-A702/I226_Flash_Tool
$ sudo su
# ./EepromAccessTool
# lspci

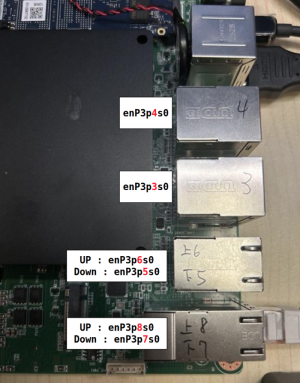

Lan : enP3p3s0

# setpci -s 0003:03:00.0 COMMAND=0003
# ./EepromAccessTool -nic=1 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Lan : enP3p4s0

# setpci -s 0003:04:00.0 COMMAND=0004
# ./EepromAccessTool -nic=2 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Lan : enP3p5s0

# setpci -s 0003:05:00.0 COMMAND=0005
# ./EepromAccessTool -nic=3 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Lan : enP3p6s0

# setpci -s 0003:06:00.0 COMMAND=0006
# ./EepromAccessTool -nic=4 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Lan : enP3p7s0

# setpci -s 0003:07:00.0 COMMAND=0007
# ./EepromAccessTool -nic=5 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Lan : enP3p8s0

# setpci -s 0003:08:00.0 COMMAND=0008
# ./EepromAccessTool -nic=6 -f=FXVL_125C_V_2MB_2.36.1.bin -mac=XXXXXXXXXXXX

Power off and restart

Cold reboot the device.

Bootloader Version

Check device boot up in debugport log

Burnin

ASR-A702 Burnin

$ cd /tool
$ sudo Burnin.sh

BootCount

BootCount tool install

In first time please install bootcount tool

$ cd /home/ubuntu
$ sudo ./bootCount.sh

Default enter the OS 20s will poweroff

Boot On Off

The boot count message will be printed before log-in.

Reset the boot count please remove bootCount.tt.

$ rm bootCount.tt

Tools

Test Command

AIW Tool

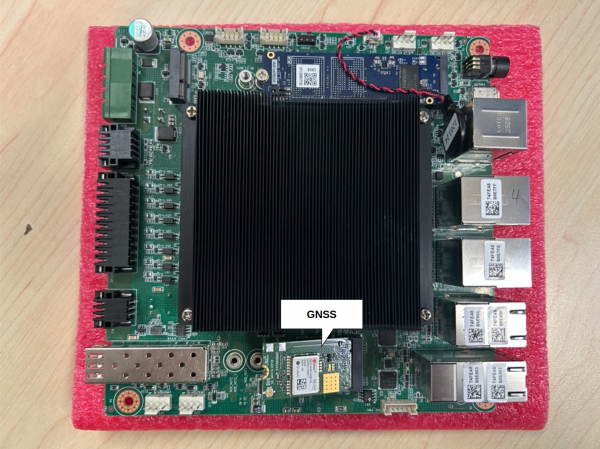

AIW-210

Module : AIW-210XU-001
Need to install tool first

$ sudo apt install --yes gpsd gpsd-clients chrony

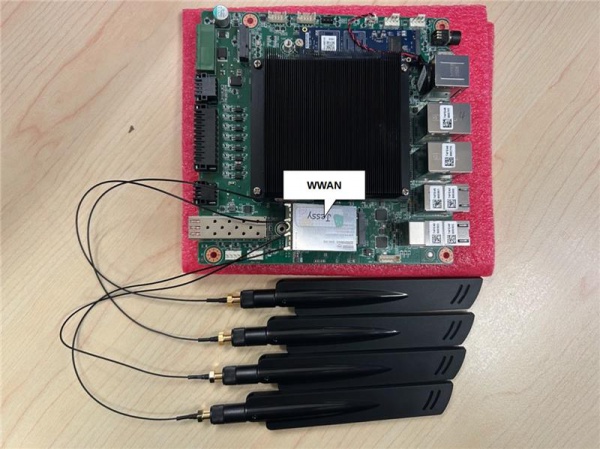

AIW-356

Module : AIW-356DQ-E01
In first time add cellular connection in modem manager by GUI or inputting commands

$ sudo mmcli --sim 0 --pin 0000
$ nmcli c add type gsm ifname cdc-wdm0 con-name CellularConnection apn internet
$ nmcli c up CellularConnection

cold reboot

AIW-169

Module : AIW-169BR-GX1
Need to install tool first

$ sudo apt install iperf3
$ cd /
$ sudo find -iname wpa_supplicant

GMSL

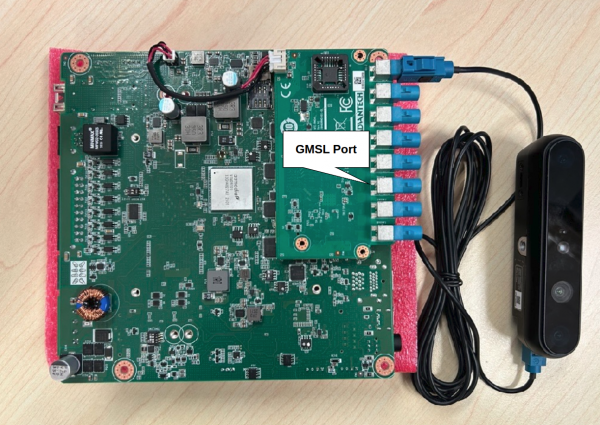

Orbbec Camera

Camera type : G40055-270
HW setting : Camera link to GMSL port

Please install camera driver first
Then system needs to reboot to take effect after setting camera interface done
Setup driver with GMSL

$ cd /tools/orbbec/
$ ./Install.sh
$ sudo reboot

Preview command

$ cd /home/ubuntu
$ gst-launch-1.0 v4l2src device=/dev/video2 ! 'video/x-raw,width=1280,height=720,framerate=30/1' ! autovideosink
