EPC-R7300 user guide

From ESS-WIKI
Jump to: navigation, search

產品介紹(Product introduction )

RTENOTITLE



產品特性(Product Features)

  • NVIDIA Jetson Orin™ Nano and NX Module compatible Barebone PC
  • Industrial and Expandable Design
  • HDMI up to 3840 x 2160 at 60Hz resolution
  • Dual GbE LAN,  2 USB3.2 Gen 2
  • 1 Nano SIM Slot
  • 1 M.2 3042/52 Key B Slot, 1 M.2 2230 Key E Slot, 1 M.2 2280 Key M Slot
  • 4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking




產品官網連結(Product official website link)

EPC-7300


硬件接口說明(Hardware interface introduction)

EPC-R7300 接口布局圖 Board Dimension Layout

EPC-R7300 Front Real IO.pngEPC-R7300 Left Right side.pngEPC-R7300 Top Bottom.png

接口引脚定義 (Pin defination)

DC in

RTENOTITLE

USB Ports

RTENOTITLE

RTENOTITLE

LAN Ports

RTENOTITLE

HDMI

RTENOTITLE

LED Indicator

RTENOTITLE

Side Door

RTENOTITLE

OTG Port

RTENOTITLE

Nano SIM

RTENOTITLE

Bottom Door

RTENOTITLE

Debug Port

EPC-R7300 provides one Debug Port for development used. Debug cable P/N: 1700021565-01 4P-1.25 to D-SUB 9P (F) 60cm

RTENOTITLE

Recovery Key

RTENOTITLE

M.2 2230 Key E Slot

EPC-R7200 provides one M.2 2230 Key E Slot for WLAN card. P/N: EWM-W159M201E 802.11 ac/a/b/g/n + Bluetooth 5.0 M.2 2230 (A-E Key) Card

RTENOTITLERTENOTITLE

M.2 3042 Key B Slot

EPC-R7200 provides one M.2 3042 Key B Slot for WWAN card. P/N: AIW-355 DQ-E01 5G M.2 3052 (B Key) Card

RTENOTITLERTENOTITLE

M.2 2280 Key M Slot

EPC-R7300 provides one M.2 2280 Key M Slot for NVMe card. P/N: SQF-C8MV2-128G-EDE 128G M.2 2280 (M Key) Card

RTENOTITLERTENOTITLE





机械尺寸  (Mechanical Characteristics)

RTENOTITLERTENOTITLE

快速入门 (Quick Start)

系统下载 (OS Download)









Linux 燒錄方法 (Linux Flash eMMC Method)

1.Prepare a Linux host system Ubuntu x64 v18.04. Download the image file and unzip the image.tar.gz file on Linux host PC. Example use image version 7300A1AIM35UIV20026.tar.gz.

$ sudo tar zxvf 7300A1AIM35UIV20026_2023-07-03.tgz
$ cd Linux_for_Tegra

2.Enter to recovery mode by holding the recover button (SW1) and plug power to boot. Release recover button around 3 seconds after plug in power.

RTENOTITLE

Or enter following command in the device.

$ sudo reboot --force forced-recovery

3.Connect Micro USB cable from EPC-R7200 Micro USB port to Linux host PC USB TypeA port. Check the device is in recovery mode by command “lsusb”. Will get NVidia Corp. with ID 0955:7623

[ubuntu@linux 11:55:43 ~]$ lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 072: ID 174c:2362 ASMedia Technology Inc. ASM236X series
Bus 001 Device 073: ID 05ac:12a8 Apple, Inc. iPhone5/5C/5S/6
Bus 001 Device 074: ID 0955:7623 NVIDIA Corp. APX
Bus 001 Device 003: ID 0bda:0169 Realtek Semiconductor Corp. Mass Storage Device

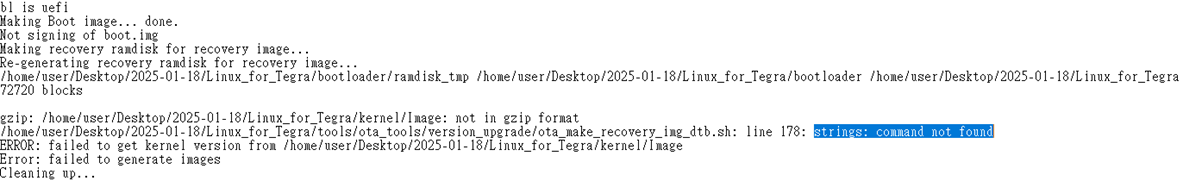

4.Execute command to flash imag:

(1) To flash QSPI + NVME SSD:

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/t186ref/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-epcr7300-a1 internal

(2) To flash only QSPI:

$ sudo ./flash.sh --no-systemimg -c bootloader/t186ref/cfg/flash_t234_qspi.xml jetson-orin-epcr7300-a1 mmcblk0p1

(3) To flash only NVMe SSD (Need to flash QSPI first):

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-only --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_external.xml --showlogs --network usb0 jetson-orin-epcr7300-a1 internal

5.Wait around 10~15 minute to flash image to device:

6.Check the device login to system:

login user: ubuntu/ubuntu

7.Check the eth1 can get the IP Addr:



Debug 串口調試 (Debug port Setting)

以 Tera Term  为例介绍如何使用串口调试功能

   Baud Rate波特率:115200
   Data 数据位:8
   Parity 奇偶校验:无
   Stop 停止位:1
   Flow Control流控:无


Tera Term Tool

RTENOTITLE

RTENOTITLE

Check the Sriel port in Device Manager (查看PC端的串口号):

if you can not identify the Serial device , please check your serial driver.

RTENOTITLE

Debug port connection (串口連接)

Log into Terminal  Tool (进入串口调试终端):

login user: ubuntu/ubuntu








Linux 基本使用方法 for jetson series(Linux System Basic Operating Method for jetson series)

  • check module

$ cat /proc/device-tree/model

  • check OS release version

$ cat /etc/os-release

  • check tegra version

$ cat /etc/nv_tegra_release

  • Install stress-ng

$ sudo apt install stress-ng

  • Execute stress test

$ stress-ng --cpu 0 --cpu-method all -t 1h

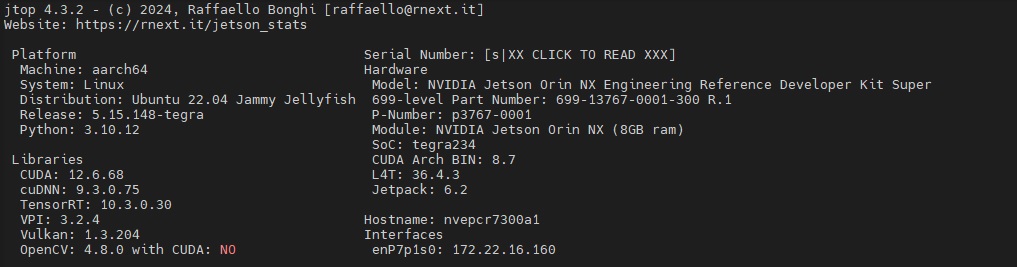

  • Install jtop

$ sudo apt update
$ sudo apt install python3-pip
$ sudo pip3 install -U jetson-stats
$ jtop

NVIDIA 模塊安裝(NVIDIA Jetson Module Installation)






How to build BSP (BSP Compile)

http://ess-wiki.advantech.com.tw/view/EPC-R7300


NVIDIA Jetson Software:
◼ Jetson Support Resource
https://developer.nvidia.com/embedded/community/support-resources


◼ Jetson Wiki
https://elinux.org/Jetson


◼ Jetson Jetpack SDK
https://developer.nvidia.com/embedded/jetpack


◼ Jetson FAQ
https://developer.nvidia.com/embedded/faq


Software Forum:
◼ Jetson Developer Forum
https://forums.developer.nvidia.com/c/agx-autonomous-machines/jetson-embedded-systems/70


◼ AIM-Linux Developer Forum
https://forum.aim-linux.advantech.com/


◼ NVIDIA NVONLINE
https://partners.nvidia.com/
