AFE-R761 GMSL & AHD
From ESS-WIKI
Revision as of 11:30, 14 January 2026 by Xingxing.li (talk | contribs)
GMSL

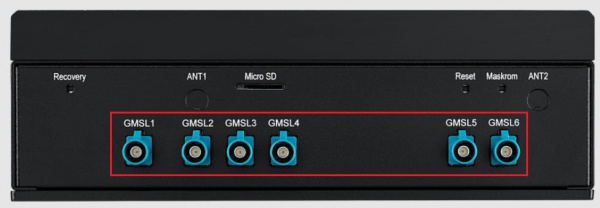

AFE-R761-UxC1 series supports 4 to 6 GMSL camera inputs via Farka connectors.
Please note that the supported voltage is 12V.
Hardware pin definition：
| GMSL：GMSL Camera Connector | |
| Pin | Pin Name |
| 1 | GMSL_IN_P (12V) |
| 2 | GND |
| 3 | GND |
| 4 | GND |
| 5 | GND |
